1-3/8" Self-align Pillow Block Bearing

Collections: Mounted Bearings, Pillow Block Bearings, UCP 200 Series

Product type: Mounted Bearings

Tags: Mounted Bearings, Pillow Block Bearings, UCP 200 Series



Add to the wishlist

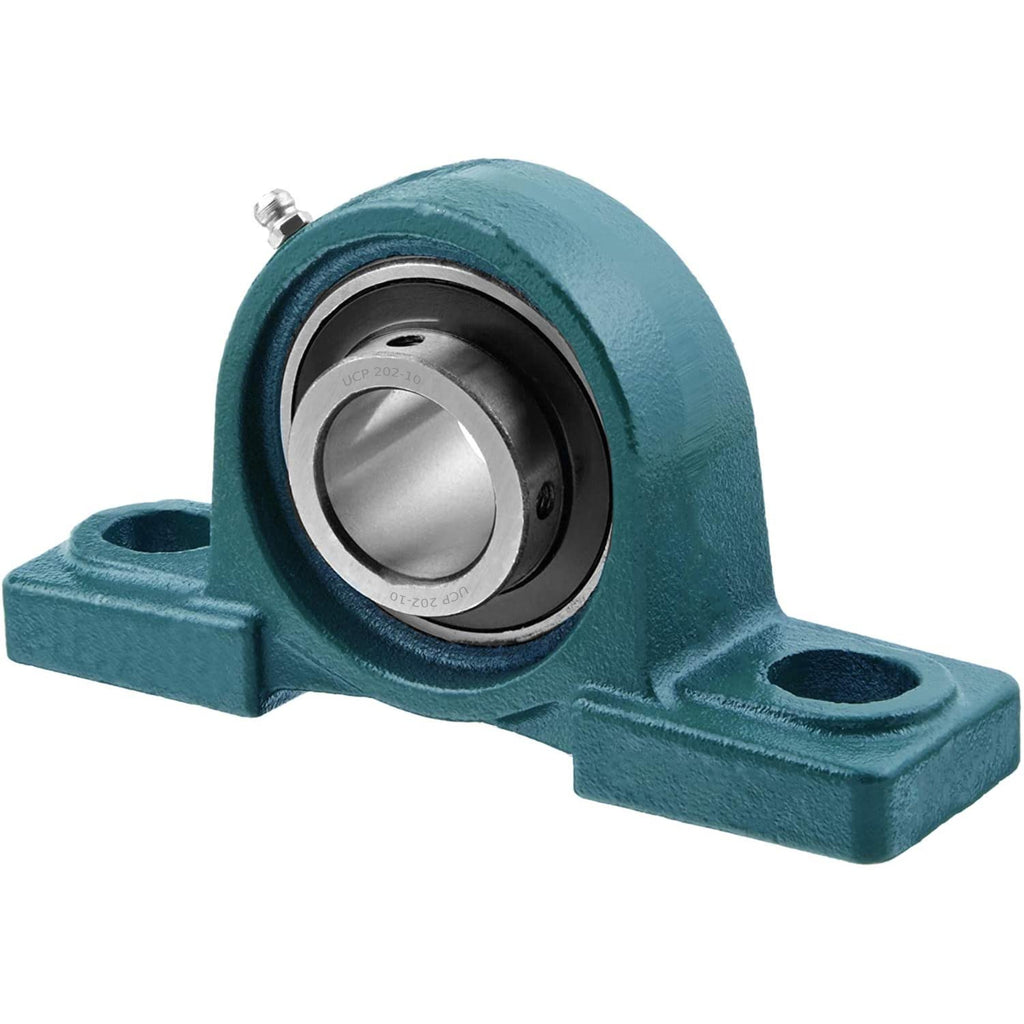

UCP 207-22 Self-align Pillow Block Bearing 1 3/8 inch


This is a new 1-3/8 inch pillow block bearing UCP 207-22 Bearing Material: Chromium Steel (GCr15) Housing Material: Cast Iron


• Standard Shaft Height - 1 7/8 " Base to Shaft Center Line
• 6-17/32" Overall Length
• 5" bolt centers - uses 1/2" Diameter Mounting Bolts
• Wide Inner Ring Bearing
• Set Screw Locking
• Relubricable with Grease Fitting
• Best Quality
• 100% Satisfaction Guaranteed
• Mounted bearings support shafts in a variety of mounting configurations (Flange block, Hanger, Pillow block, and Take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.
• Common usage for UCP Pillow Block Bearing includes: Agriculture, Construction, Conveyors, Conveying, Feed Mill, Food and Beverage, HVAC, Packaging and General Industrial Equipment.
• Reference: AMI: UCP 207-22, Browning: VPS-222, Dodge: P2B-SC-106, Fafnir: RASC-1 3/8, Fafnir: YAS-1 3/8, Link-Belt: P3-U222N, Link-Belt: P3-Y222N, NSK: USP207-22S, NTN: UCP207-106T, Peer: FHSP207-22G, RHP: NP-1 3/8, Sealmaster: NP-22
